Server motherboards are the backbone of any robust IT infrastructure. They are pivotal in ensuring that servers run efficiently, handling multiple tasks, and managing heavy workloads. The quality and capability of a server motherboard can significantly influence the overall performance and reliability of a server.
With advancements in technology, server motherboards now offer enhanced features, greater flexibility, and higher reliability to meet the demands of modern businesses. One such advanced server motherboard is the X9DRI-F from Supermicro, designed to cater to the needs of enterprises requiring superior performance and scalability.

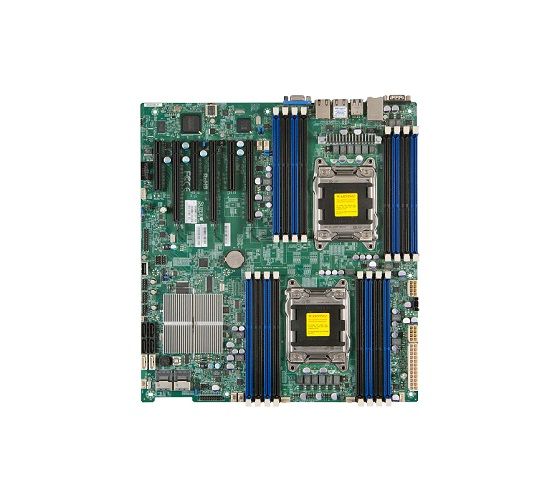

Supermicro X9DRI-F — Basic Introduction
The X9DRI-F motherboard is a part of Supermicro’s extensive range of high-performance server motherboards. It is built to support Intel’s Xeon E5-2600 and E5-2600 V2 series processors, making it an ideal choice for businesses looking to upgrade their server capabilities. This motherboard is designed to enhance server performance, support complex applications, and ensure reliable operation in demanding environments.
Supermicro X9DRI-F – Detailed Specifications
Processor and Memory Support
The X9DRI-F motherboard supports dual LGA2011 sockets, allowing for the installation of two Intel Xeon E5-2600 or E5-2600 V2 series processors. This dual-socket configuration significantly boosts the server’s processing power, making it capable of handling intensive computing tasks.
-
Processor Support: Intel Xeon E5-2600/E5-2600 V2
-
Socket Type: Dual LGA2011
The motherboard also supports up to 1TB of DDR3 ECC (Error-Correcting Code) memory across 16 DIMM slots. This vast memory capacity ensures that the server can efficiently manage large databases and run multiple virtual machines simultaneously.
-
Memory Type: DDR3 ECC
-
Memory Capacity: Up to 1TB
-
DIMM Slots: 16
Expansion Slots and Storage
The X9DRI-F is equipped with several PCI-Express slots, providing ample expansion options for additional network cards, storage controllers, and other peripherals.
PCI-Express Slots: 6 x PCI-E 3.0 x8, 1 x PCI-E 3.0 x4 (in x8)
For storage, the motherboard includes ten SATA ports, with six of them supporting SATA 3.0 (6Gbps) speeds. This ensures high-speed data transfer rates, which are crucial for tasks involving large datasets and rapid data access.
SATA Ports: 10 (6 x SATA 3.0, 4 x SATA 2.0)
Network and Connectivity
Network connectivity is a critical aspect of server operations, and the X9DRI-F excels in this area with dual Gigabit Ethernet ports powered by Intel i350 controllers. This ensures reliable and fast network performance, which is essential for data centers and enterprise environments.
Network: Dual Gigabit Ethernet (Intel i350)
Additional Features
The X9DRI-F motherboard also includes an integrated IPMI 2.0 with KVM (Keyboard, Video, Mouse) over LAN support. This feature allows for remote management of the server, providing IT administrators with the ability to monitor and manage the server from anywhere, thus enhancing operational efficiency and reducing downtime.
IPMI: Integrated IPMI 2.0 with KVM over LAN
How Can X9DRI-F Elevate Your Workplace Productivity?
Enhanced Performance
The X9DRI-F motherboard’s support for dual processors and extensive memory capacity enables businesses to run more applications concurrently, thus improving overall productivity. Whether it is running complex simulations, managing large databases, or hosting virtual machines, this motherboard ensures smooth and efficient performance.
Scalability
The motherboard’s numerous PCI-Express slots and large memory capacity make it highly scalable. Businesses can easily upgrade their servers to meet growing demands without the need to replace the entire system, thus protecting their investment and reducing long-term costs.
Reliability
With features like ECC memory support and integrated IPMI, the X9DRI-F ensures high reliability and uptime. ECC memory helps in detecting and correcting memory errors, preventing data corruption, while IPMI allows for remote monitoring and troubleshooting, minimizing downtime and maintenance costs.
X9DRI-F – Troubleshooting Guide
Common Issues and Solutions
Issue: System Won’t Power On
Solution: Check all power connections to ensure they are securely connected. Verify that the power supply unit is functioning properly. Reset the BIOS settings to default by clearing the CMOS.
Issue: No Display Output
Solution: Ensure that the graphics card is properly seated in its slot. Check the monitor connection and verify that it is working. If using onboard graphics, ensure that the BIOS settings are configured to use the onboard graphics output.
Issue: Memory Not Recognized
Solution: Verify that the memory modules are compatible with the motherboard. Ensure that the modules are properly seated in the DIMM slots. Try reseating the memory or testing each module individually to identify any faulty ones.
Issue: Network Connectivity Problems
Solution: Check the network cables and connections. Verify the network settings in the BIOS. Ensure that the network drivers are up to date.
Preventive Maintenance Tips
-
Regular BIOS Updates: Keep the BIOS updated to ensure compatibility with new hardware and improved system stability.
-
Clean Dust and Debris: Regularly clean the motherboard and components to prevent overheating and ensure proper airflow.
-
Check for Firmware Updates: Regularly check for firmware updates for the IPMI and network controllers to ensure optimal performance and security.
X9DRI-F – Relevant Use Cases
Data Centers
The X9DRI-F is an excellent choice for data centers that require high-performance servers with reliable uptime. Its support for dual processors and large memory capacity makes it ideal for handling heavy workloads and running multiple virtual machines.
Enterprise Applications
For enterprises running resource-intensive applications such as ERP, CRM, and large databases, the X9DRI-F provides the necessary performance and scalability.
Its high-speed network connectivity and robust remote management capabilities make it a reliable solution for enterprise environments.
Cloud Services
The motherboard’s scalability and support for high memory capacity make it suitable for cloud service providers. It can efficiently manage multiple virtual environments, ensuring high availability and performance for cloud-based applications.
Where to Buy the X9DRI-F
Always go for a credible and authoritative marketplace for purchasing your server motherboards. One such marketplace is Direct Macro. With 500+ five-star ratings on Shopper Approved, they are known for delivering the best customer experience in town.
Conclusion
At this point, you are well equipped with all the information you need to make a satisfying purchase. Choose wisely and analyze your requirements to extract the most out of your investment. Thanks for reading and good luck with your purchase.
